FJD AH2 MAX Hydraulic Autosteering System
Precision Hydraulic Steering That Keeps Your Original Steering Wheel
The FJD AH2 MAX Hydraulic Autosteering System represents the pinnacle of precision farming technology for heavy-duty agricultural machinery. Unlike electric steering systems that replace your tractor’s steering wheel, the AH2 MAX integrates directly into your vehicle’s hydraulic steering circuit, providing massive torque and instant response without sacrificing the comfort and familiarity of your original steering wheel .
This advanced system is specifically designed for large tractors, harvesters, and other high-horsepower agricultural vehicles that require robust, reliable control on challenging terrain . By regulating steering oil flow through a proportional valve installed alongside the existing Orbitrol, the AH2 MAX delivers professional-grade precision with a clean, hidden installation that preserves your cab’s ergonomics .
FJD AH2 Max Key Features & Benefits
FJD AH2 Max Superior Hydraulic Precision
-
RTK positioning accuracy up to 2.5 cm for pinpoint guidance
-
Direct hydraulic control eliminates mechanical deadband and provides instant steering response
-
Massive hydraulic torque effortlessly handles heavy front-loaders and challenging terrain
-
Integrated pressure sensor automatically disengages autosteer when the driver takes manual control
Next-Generation Display Technology
-
12.1-inch high-brightness capacitive touchscreen – 46% larger viewing area than the standard AH2 display
-
4-split-screen capability allowing simultaneous monitoring of navigation maps, camera feeds, equipment controls, and machinery data
-
High-resolution LED-backlit display ensures excellent visibility even in direct sunlight
-
Significantly faster processor and double the RAM capacity compared to previous models, ensuring smooth multitasking performance

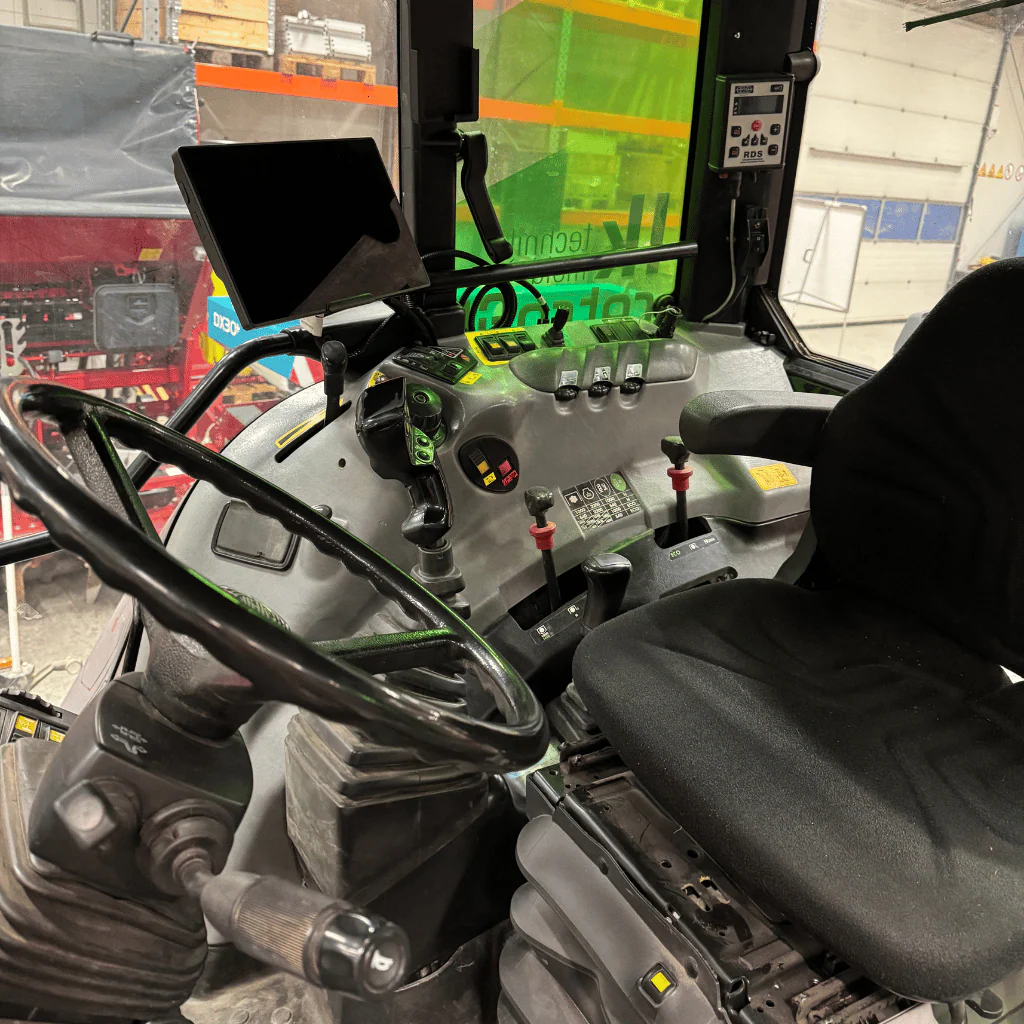

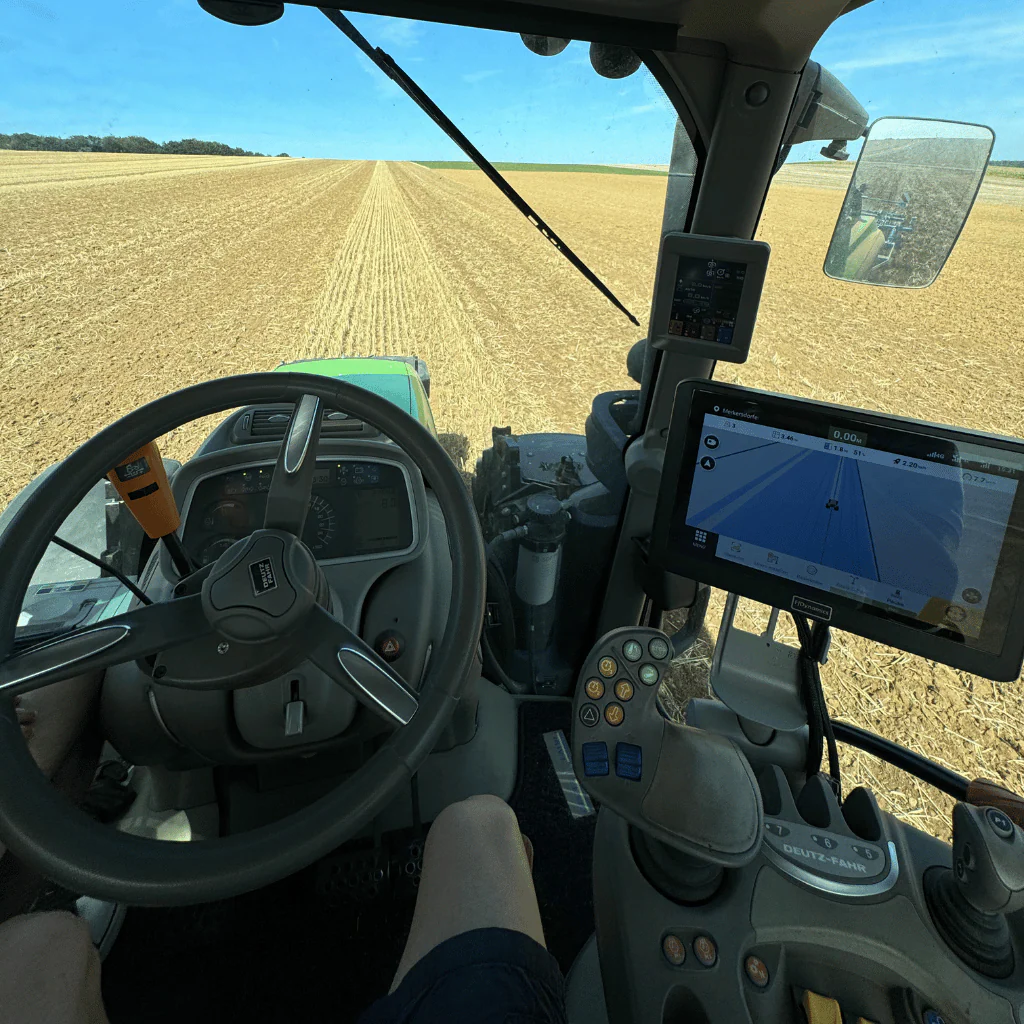

Preserves Original Equipment
-
Original steering wheel remains intact – no replacement needed
-
Clean, professional installation with all hardware components hidden within the machine’s structure
-
No aesthetic or functional changes to the cab interior
FJD AH2 Max Rugged & Reliable
-
Built for tough conditions with rugged, durable components designed for year-round farming
-
Wide operating temperature range from -30°C to +75°C for the main unit and -40°C to +85°C for critical sensors
-
IP65–IP67 waterproof and dustproof ratings on key components
FJD AH2 Max Smart Features
-
Multiple guidance line patterns: straight, curved, A+, Pivot, contour, and more
-
Smart U-Turn function for automated headland turns
-
Easy Switch button/pedal for engaging autosteer without taking hands off the controls
-
Free software updates for continuous improvement
FJD AH2 Max Complete Technical Specifications
| Component | Specification |
|---|---|
| Product Type | Hydraulic Autosteering System |
| Model | AH2 MAX |
| Steering Method | Direct hydraulic valve control |
| RTK Accuracy | Up to 2.5 cm |
| PPP Accuracy | ~15 cm |
FJD AH2 Max Control Terminal
| Parameter | Details |
|---|---|
| Screen Size | 12.1 inches |
| Resolution | 1280×800 pixels |
| Display Type | LCD with LED backlight |
| Operating Voltage | 10–30V DC |
| Network Module | 4G (compatible with 2G/3G) |
| IP Rating | IP65 |
| Operating Temperature | -30°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 300×190×43 mm |
FJD AH2 Max GNSS Receiver
| Parameter | Details |
|---|---|
| Supported Systems | GPS, GLONASS, BDS (BeiDou), Galileo, QZSS |
| Frequency Bands | GPS: L1, L2; BDS: B1I, B2I, B3I, B1C, B2a; Galileo: E1, E5a, E5b; QZSS: L1, L2, L5 |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +85°C |
FJD AH2 Max Hydraulic Unit
| Parameter | Details |
|---|---|
| Max Flow Rate | 30 L/min |
| Valve Options | 4 different hydraulic valve configurations |
| Compatibility | Suited for open-center and closed-center hydraulic systems |
FJD AH2 Max Angle Sensor
| Parameter | Details |
|---|---|
| IP Rating | IP67 |
| Operating Temperature | -40°C to +85°C |
| Power Supply | 5V |
| Output | 12/24 VDC |

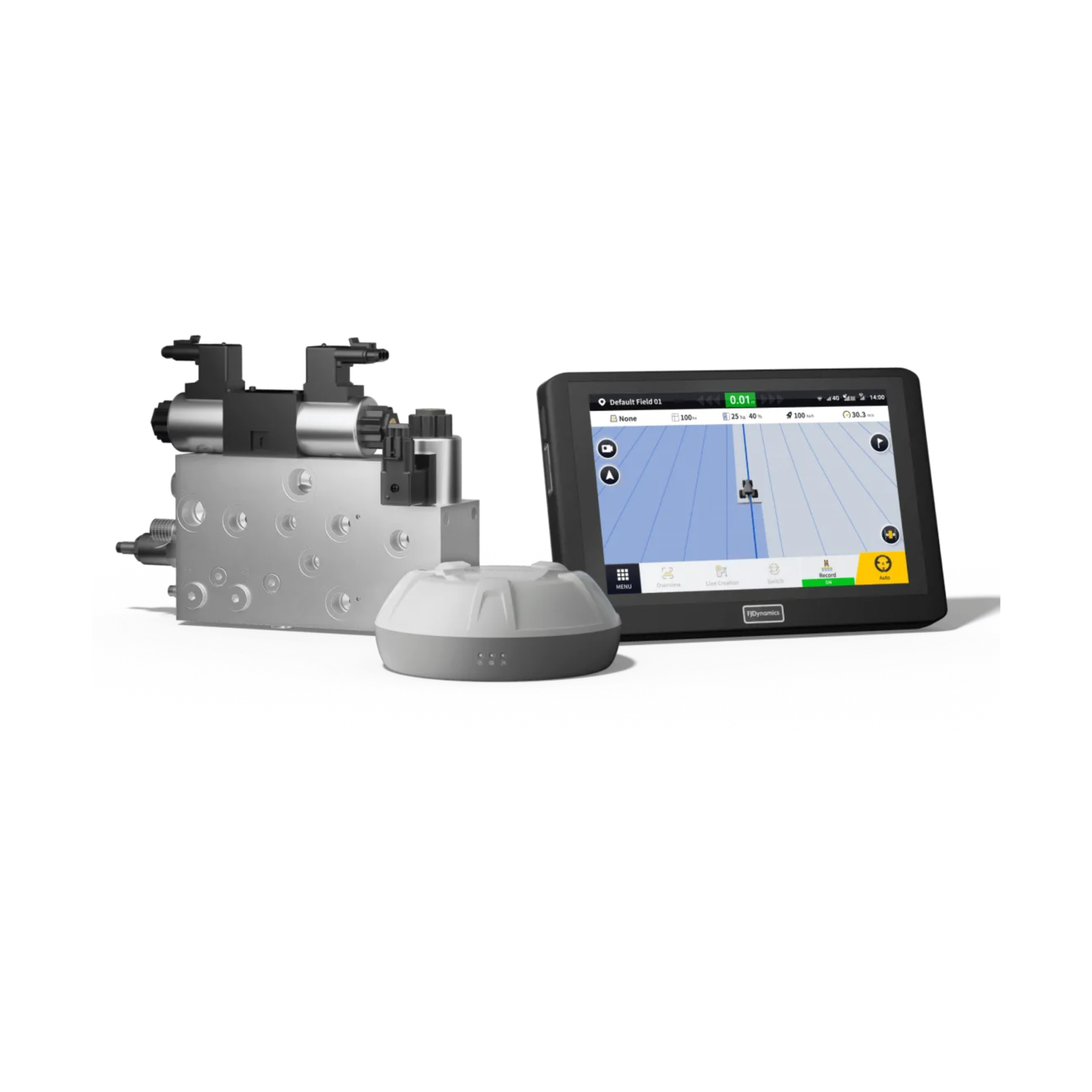

Complete Kit Contents
The FJD AH2 MAX system includes:
-
12.1-inch Control Terminal with metal casing
-
Hydraulic proportional valve with integrated electronics
-
Pressure sensor for manual override detection
-
Angle sensor for real-time wheel position monitoring
-
GNSS Antenna with integrated IMU, 4G, and radio antenna
-
Radio and 4G antennas for RTK and data connectivity
-
Complete wiring harnesses
-
Mounting brackets and accessories
-
FJD Farm Management System (FMS) cloud service access
-
Comprehensive user manuals

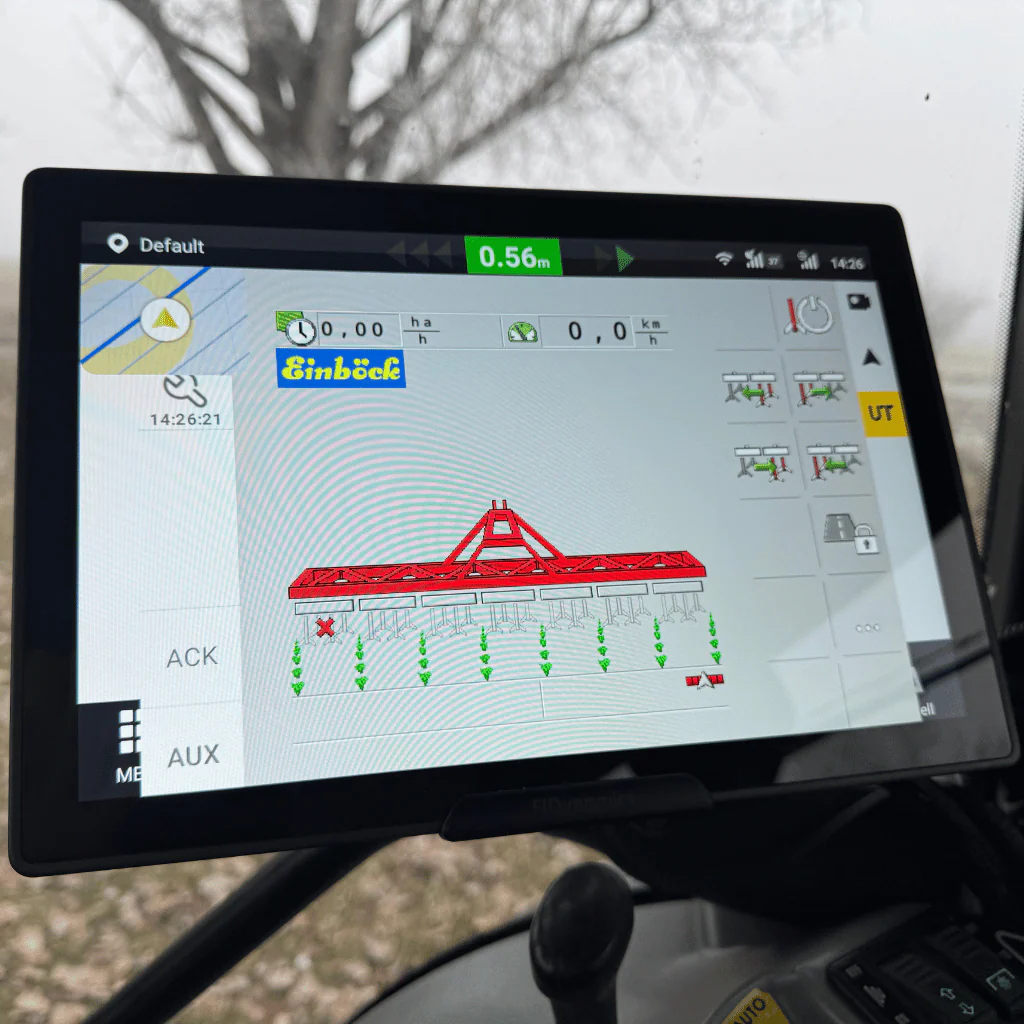

ISOBUS Compatibility
The AH2 MAX features full ISOBUS compatibility, opening your older tractor to modern precision ag solutions :
-
Supports VT (Universal Terminal) for implement control
-
TC-SC (Task Controller Section Control) for automatic section control
-
AUX-N functions for auxiliary control
-
AEF certified for compatibility with all major implement brands
-
Wi-Fi camera integration – connect optional cameras directly to the display for implement monitoring
FJD AH2 Max Farm Benefits
-
Reduced overlaps and missed areas – save fuel, seed, fertilizer, and pesticides
-
200–270% efficiency increase documented in real-world harvesting operations
-
67% faster harvesting compared to manual steering
-
Stable steering on slopes – perfect for uneven terrain
-
Less operator fatigue – the system does the heavy steering, allowing focus on other tasks
-
Significant asset value increase – transform older tractors into smart machines
-
One-time purchase – no ongoing subscription fees
-
Proven compatibility with 95%+ of tractors – especially high-horsepower models
-
Global support network with response within one hour
Vehicle Compatibility
The FJD AH2 MAX has been successfully installed and tested on numerous tractor brands, including:
-
New Holland
-
Fendt
-
Steyr (successfully installed on Steyr Expert 4130 CVT Power)
-
And virtually any tractor or agricultural vehicle with power steering
Pricing
Approximate Retail Price: €6,500 (excl. VAT)
Why Choose Hydraulic Steering?
The AH2 MAX uses fluid power to control steering cylinders directly, providing massive torque that allows the system to turn wheels effortlessly even in thick mud or under heavy front-loader weight . Because it bypasses the mechanical steering column, it also eliminates the “deadband” (loose play) found in older steering wheels, delivering smooth, wobble-free autosteering that locks onto the line and stays there .
Upgrade your tractor to precision farming—without replacing what you already own.
